Careline Fionia 95

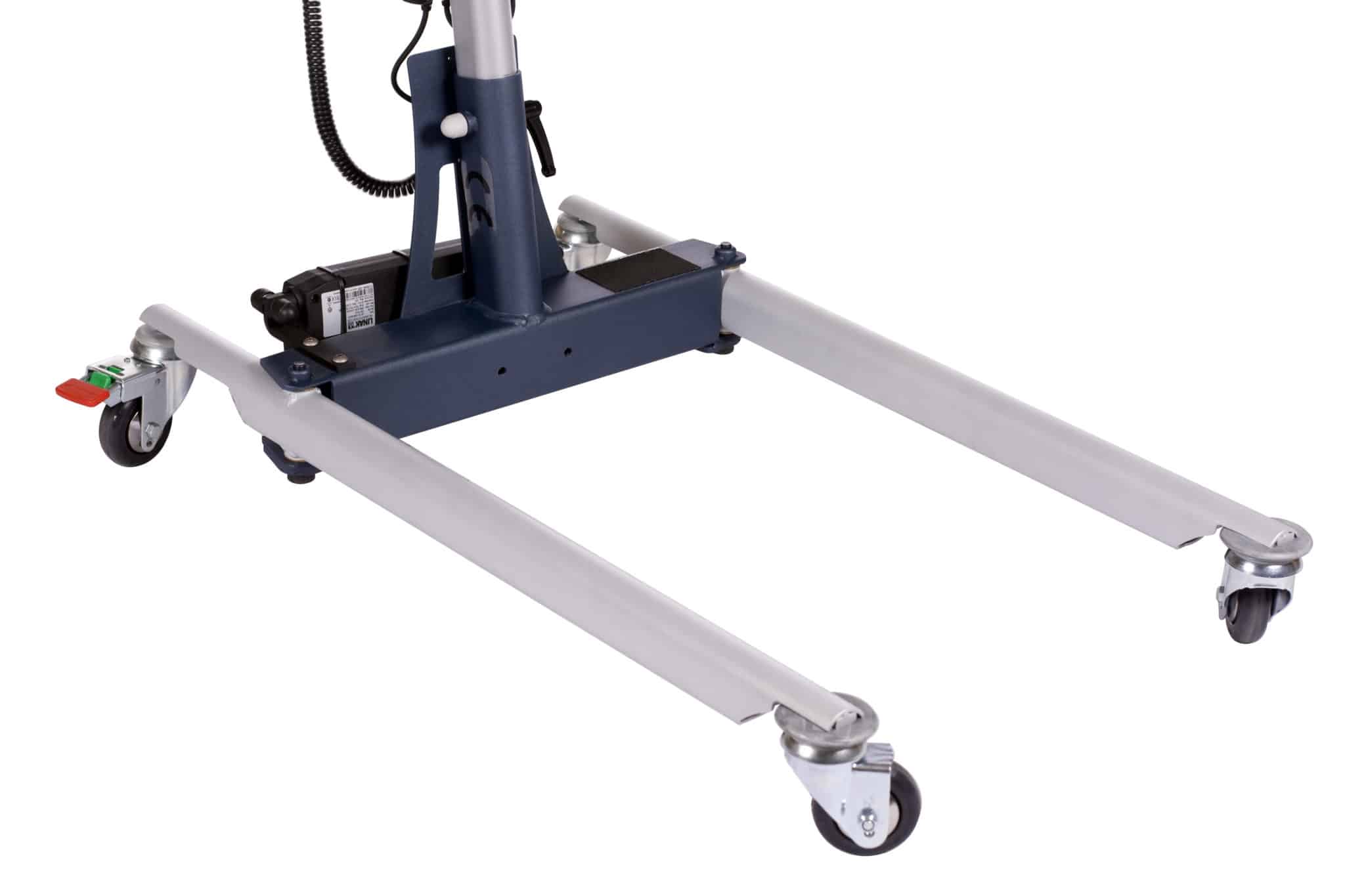

The CareLine Fionia Lift has electric spreading of the legs which move a full length like the traditional V-lifts. This means that the distance between the castors is reduced slightly when spreading the legs. In the electric version the legs are spread quietly and steadily.

See further information below

Back to product overview

Description

Lift for small/narrow rooms

Standard equipment:

Foam upholstered hanger bar
Adjustable handle
Well functioning castors enable easy and safe transport even on carpets

General:

Main features:

Charger: Is integrated in the control box
Power overload circuit: The control box is also equipped with a power overload circuit for the lifting and leg spreading functions.
Hand control: Is equipped with pictograms indicating the up/down and in/out functions. It has an expandable spiral cord and is magnetically attached for flexible positioning.
Emergency stop: Disconnects the power supply to and from the batteries.
Audible beep: Sounds when charging is required.
Rear Castors: braked.

Emergency
Release buttons: If, for some reason, the lift falls, 2 emergency release buttons will lower the lifting arm: one electric placed on the control box, and one manual on the lifting actuator. Battery indicator: Informs you of battery capacity. Battery charging light: Lights up when charging is required.

Art no.: 2004-95-2

Technical Specification
Fionia 95
Max. User weight	95 kg
Height undercarrige	130 mm
Floor clearance height	70 mm
Castors	80 mm
Leg length	920 mm
Inside dimension between legs, min.	430 mm
Inside dimension between legs max.	780 mm
Lifting min.	460 mm
Lifting max.	1620 mm
Total weight	37 kg
Weight lower section	16 kg
Weight upper section	18 kg
