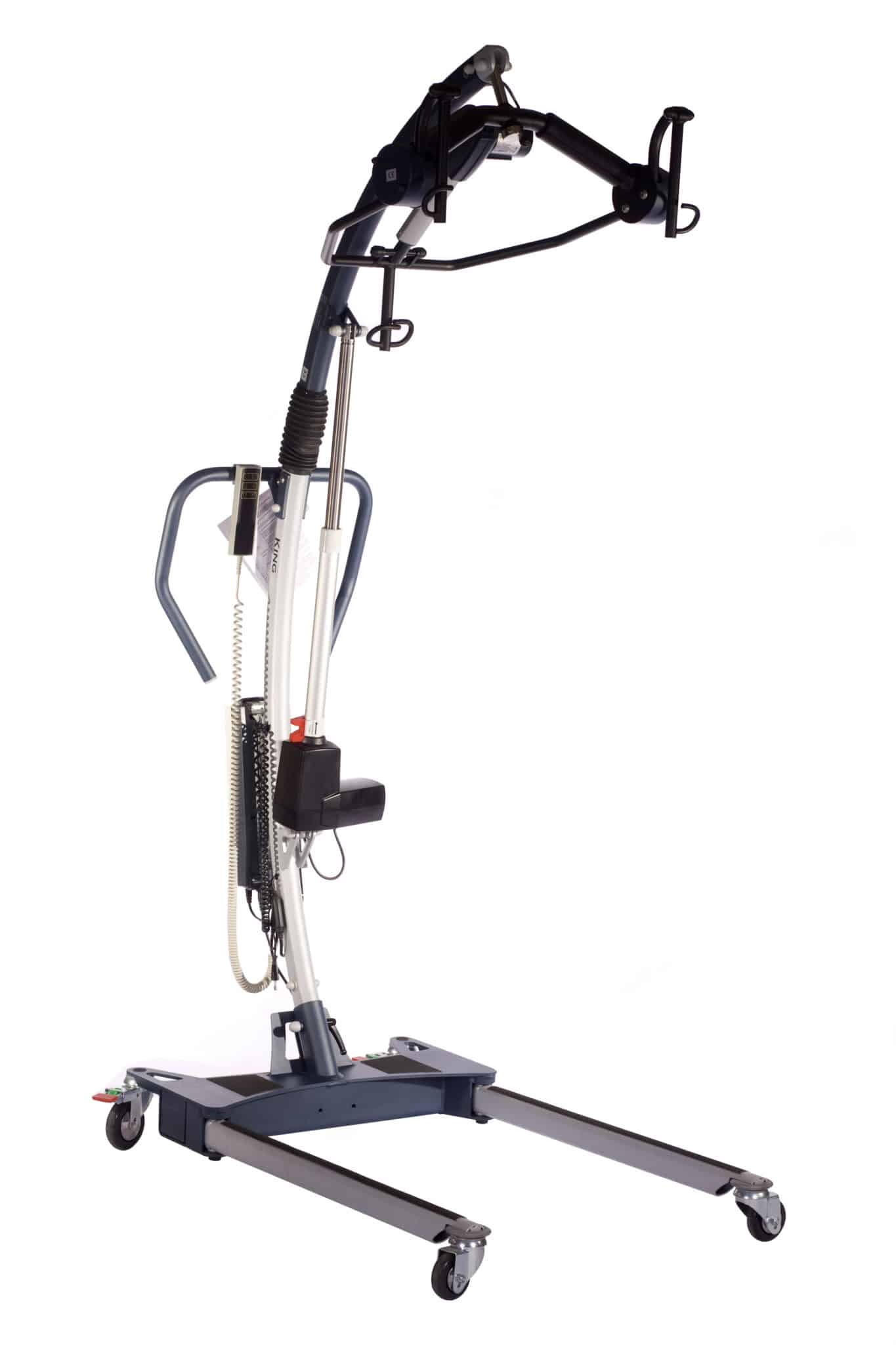

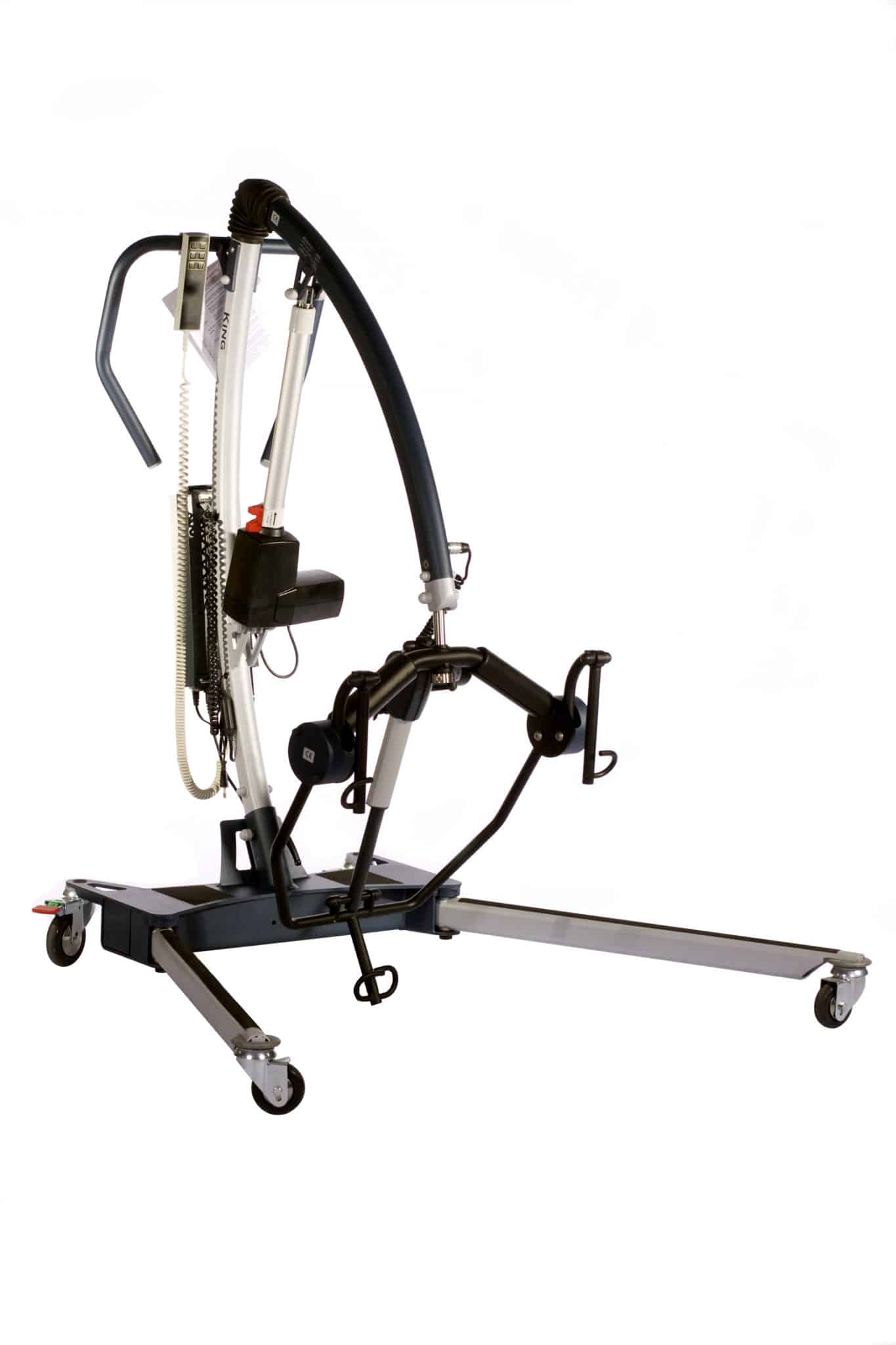

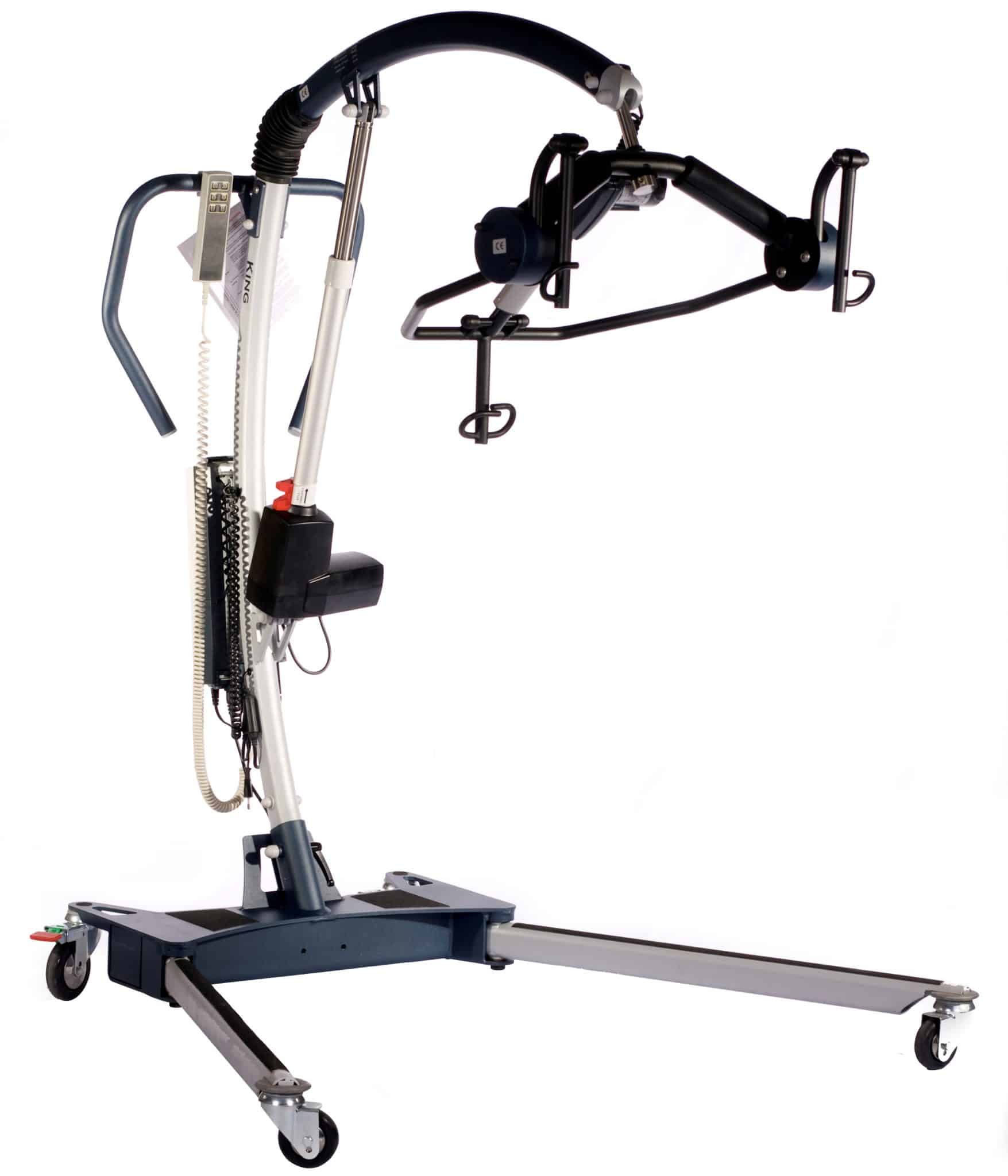

King mini 200 Electrical 4-point hanger bar

Careline King mini 200 has built-in 4-point Electric hanger bar and 6-point hand control, type Linak. With this special hanger bar it is safe and easy to position the patient and can be elevated from the floor to sitting position or to a laying position in the bed. Careline King mini 200 can, as option be supplied with a compact electronic medical approved scale with memory function and self-adjustable to zero. Careline King mini 200 has additional V-spreading of the legs, which ensures a remarkable stability compared to similar lifts.



See further information below

Back to product overview

Category:

Description

General:

Main features:

  • Charger: Is integrated in the control box
  • Power overload circuit: The control box is also equipped with a power overload circuit for the lifting and leg spreading functions.
  • Hand control: Is equipped with pictograms indicating the up/down and in/out functions. It has an expandable spiral cord and is magnetically attached for flexible positioning.
  • Emergency stop: Disconnects the power supply to and from the batteries
  • Audible beep: Sounds when charging is required
  • Rear Castors: braked



Emergency
Release buttons: If, for some reason, the lift falls, 2 emergency release buttons will lower the lifting arm: one electric placed on the control box, and one manual on the lifting actuator. Battery indicator: Informs you of battery capacity. Battery charging light: Lights up when charging is required.

Art no.: 2003K-200-3
Technical Specifications
King mini 200
Max. User weigth 200 kg
Height undercarriage 130 mm
Floor clearance height 70 mm
Castors 80 / 100 mm
Leg length 1150 mm
Inside dimension between legs, min. 550 mm
Inside dimension between legs, max. 1150 mm
Outside dimension over legs, min. 650 mm
Outside dimension over legs, max. 1230 mm
Turning radius 1310 mm
Lifting min. 500 mm
Lifting max. 1900 mm
Total weight 49 kg
Weight lower section 27 kg
Weight upper section 22 kg
