Description

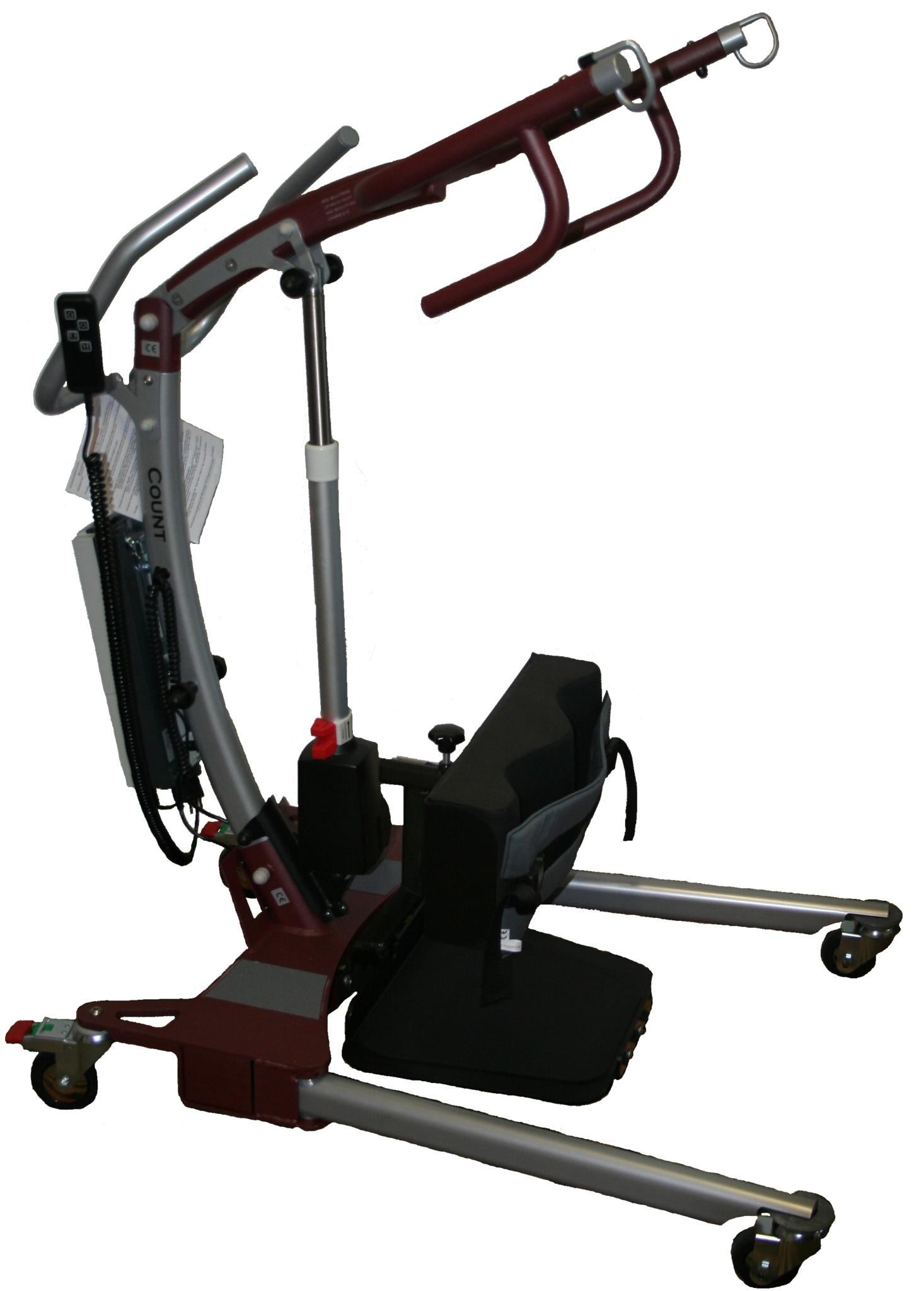

Advantages with Careline Count 200:
- Additional spreading of the legs
- Optimal possibilities for the user to use their remaining rising and standing functions actively
- Lifting capacity until 200/250 kg.
- Electric spreading of the legs
- Optimal stability
- Several color combinations
- New design
General:
Main features:
- Charger: Is integrated in the control box
- Power overload circuit: The control box is also equipped with a power overload circuit for the lifting and leg spreading functions.
- Hand control: Is equipped with pictograms indicating the up/down and in/out functions. It has an expandable spiral cord and is magnetically attached for flexible positioning.
- Emergency stop: Disconnects the power supply to and from the batteries
Emergency
Release button: If, for some reason, the lift fails, 2 emergency release buttons will lower the lifting arm: one electric placed on the control box and one manual on the lifting actuator. Battery indicator: Informs you of battery capacity. Battery charging light: Lights up when charging is required. Audible beep. Sound when charging is required. Rear Castors: Braked
| Art no.: 2003C-200-2 | |
| Technical Specifications | |
| Count 200 Stand Up | |
| Max. User weigth | 200 – 250 kg |
| Height undercarriage | 130 mm |
| Floor clearance height | 70 mm |
| Castors | 80 / 100 mm |
| Leg length | 950 mm |
| Inside dimensions between legs, min. | 555 mm |
| Inside dimensions between legs, max. | 1050 mm |
| Outside dimension over legs min. | 650 mm |
| Outside dimension over legs, max. | 1110 mm |
| Turning radius | 1150 mm |
| Lifting min. | 600 mm |
| Lifting max. | 1700 mm |
| Total weight | 44 kg |
| Weight lower section | 26 kg |
| Weight upper section | 18 kg |
