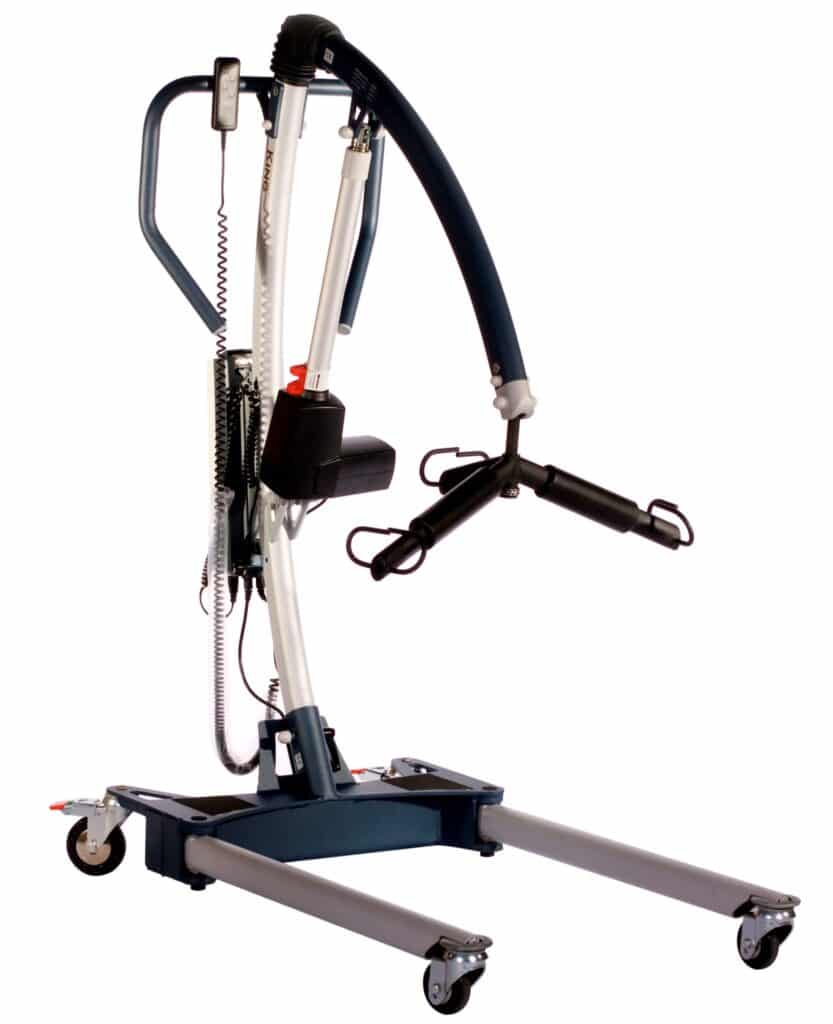

Faaborg Alu lift 200

This type of lift is particularly useful for people who are in partial possession of the body’s original functions, so that it can help them utilize their raise and / or standing functions actively. It is equipped with electrical spreading of the legs. The wheels are well-functioning and double which allow for easy transport, also on carpets. Padded hanger bar is standard.



See further information below

Back to product overview

Categories: ,

Description

General:

Main features:

  • Charger: Is integrated in the control box
  • Power overload circuit: The control box is also equipped with a power overload circuit for the lifting and leg spreading functions.
  • Hand control: Is equipped with pictograms indicating the up/down and in/out functions. It has an expandable spiral cord and is magnetically attached for flexible positioning.
  • Emergency stop: Disconnects the power supply to and from the batteries
  • Audible beep: Sounds when charging is required
  • Rear Castors: braked

Emergency
Release buttons: If, for some reason, the lift falls, 2 emergency release buttons will lower the lifting arm: one electric placed on the control box, and one manual on the lifting actuator. Battery indicator: Informs you of battery capacity. Battery charging light: Lights up when charging is required.

Art no.: 2005C-200-4
HMI:
Technical Specifications
Faaborg Alu lift
Max. User weight 200 kg
Height of undercarriege 130 mm
Floor clearance height 70 mm
Castors 80 / 100 mm
Leg length 1170 mm
Indside dimension between legs min. 590 mm
Indside dimension between legs max. 790 mm
Outside dimension over legs min. 320 mm
Outside dimension over legs max. 880 mm
Turning Radius 1320 mm
Lifting min. 780 mm
Lifting max. 1650 mm
Total weight 48 kg
Weight lower section 33 kg
Weight upper section 18 kg
