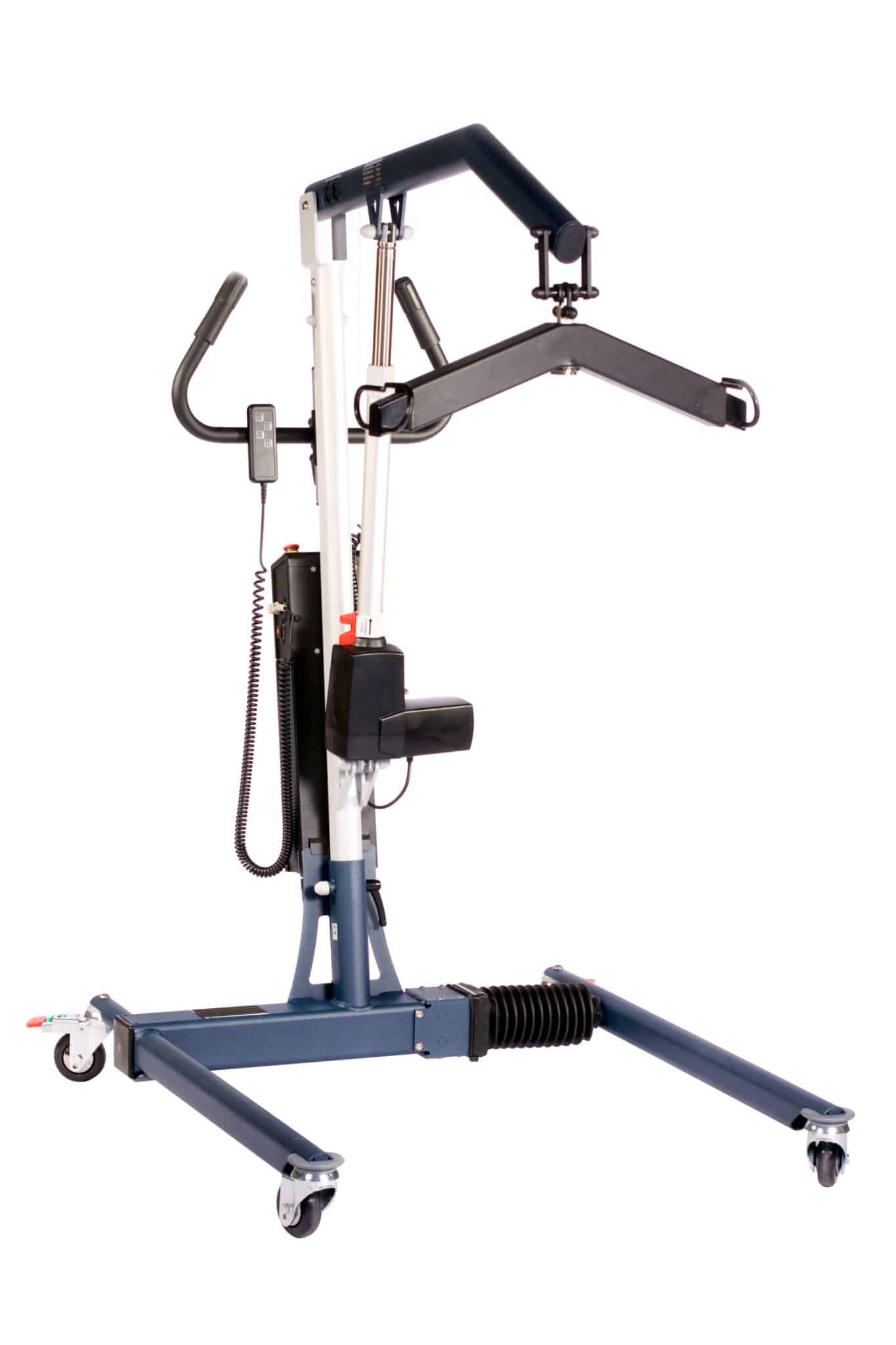

Careline Jutlandia PL 165 Lift

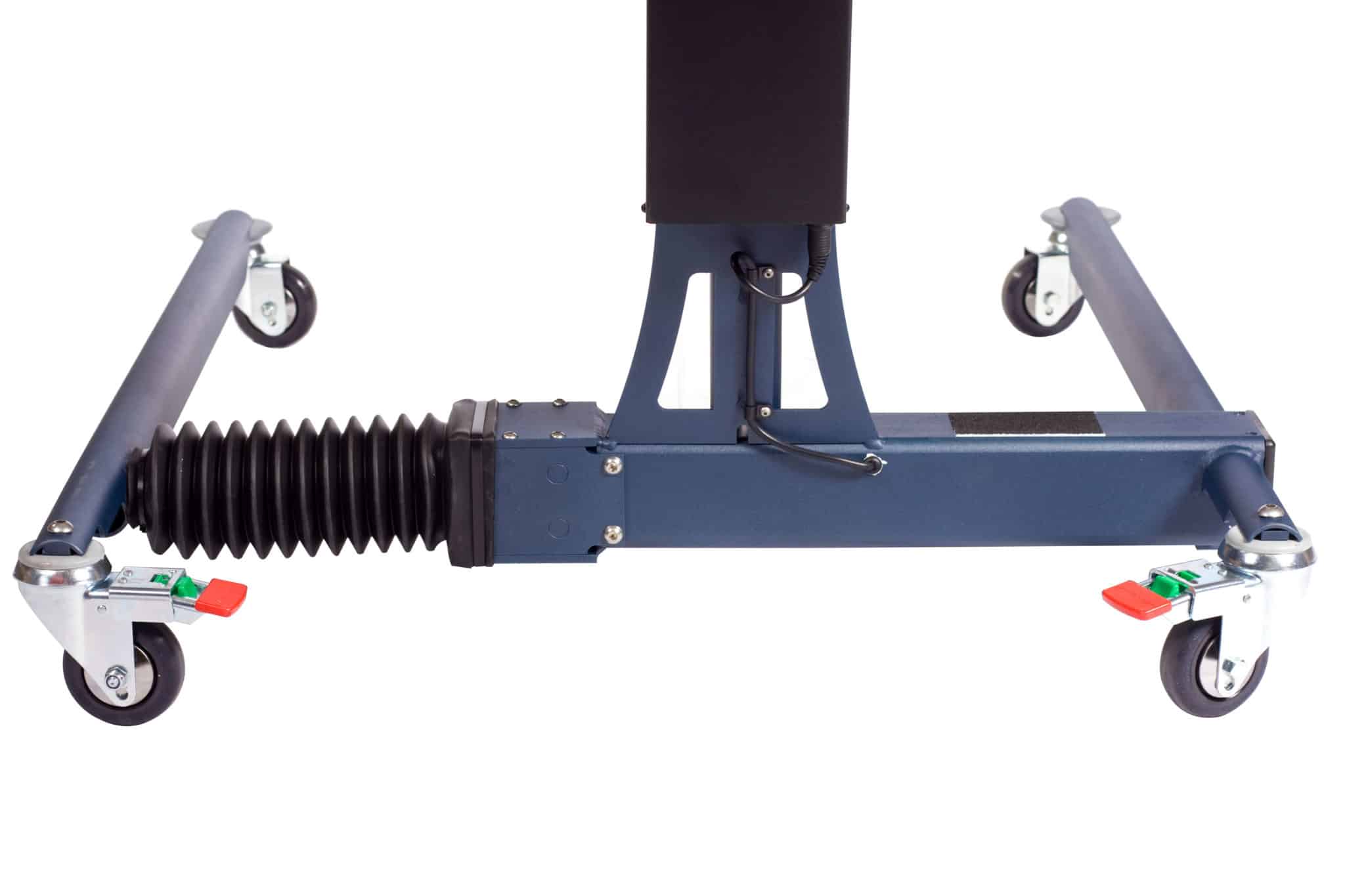

The unique Careline Jutlandia parallel leg spreading function, by which only the left leg is regulated and the right leg remains in a fixed parallel position, affords a wider base spread and new flexible lifting possibilities in places where a conventional V leg spread will not work, like lifting from the side of a chair or from the end of a bed/bathtub. The lift is equipped with specially designed, easy rolling, high quality castors, which also work well on carpets. The hanger bar is polyurethane padded. Practically designed handle bars offer the carrier carious hand grip options.

See further information below

Back to product overview

Category:

Description

Standard equipment:

  • Upholstered hanger bar
  • Available in in different color combinations
  • Adjustable handle

General:

Main features:

  • Charger: Is integrated in the control box
  • Power overload circuit: The control box is also equipped with a power overload circuit for the lifting and leg spreading functions.
  • Hand control: Is equipped with pictograms indicating the up/down and in/out functions. It has an expandable spiral cord and is magnetically attached for flexible positioning.
  • Emergency stop: Disconnects the power supply to and from the batteries
  • Audible beep: Sounds when charging is required
  • Rear Castors: braked

Emergency

Release buttons: If, for some reason, the lift falls, 2 emergency release buttons will lower the lifting arm: one electric placed on the control box, and one manual on the lifting actuator. Battery indicator: Informs you of battery capacity. Battery charging light: Lights up when charging is required.

Art no.: 2001-165-2
Technical Specifications
Jutlandia PL 165
Max. User weight 165 kg
Height of undercarriage 130 mm
Floor clearance height 70 mm
Castors 80 mm
Leg length 1110 mm
Inside dimension between legs min. 570 mm
Indside dimension between legs max. 860 mm
Outside dimension min. 650 mm
Outside dimension max. 940 mm
Turning radius 1285 mm
Lifting min. 460 mm
Lifting max. 1700 mm
Total weight 45 kg
Weigth lower section 24 kg
Weight upper section 21 kg
Weight upper section 18 kg
