Description
General:
Main features:
- Charger: Is integrated in the control box
- Power overload circuit: The control box is also equipped with a power overload circuit for the lifting and leg spreading functions.
- Hand control: Is equipped with pictograms indicating the up/down and in/out functions. It has an expandable spiral cord and is magnetically attached for flexible positioning.
- Emergency stop: Disconnects the power supply to and from the batteries
- Audible beep: Sounds when charging is required
- Rear Castors: braked
Emergency
Release buttons: If, for some reason, the lift falls, 2 emergency release buttons will lower the lifting arm: one electric placed on the control box, and one manual on the lifting actuator. Battery indicator: Informs you of battery capacity. Battery charging light: Lights up when charging is required.
| Art no.: 2005-185-4 | |
| HMI: | |
| Technical Specifications | |

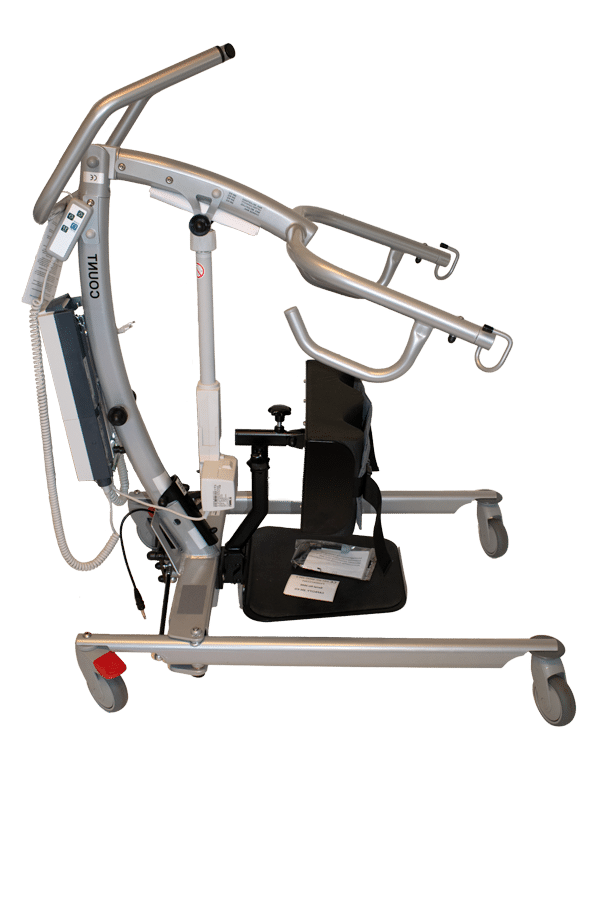

| Faaborg Alu lift | |
| Max. User weight | 250 kg |
| Height of undercarriege | 130 mm |
| Floor clearance height | 70 mm |
| Castors | 75 / 100 mm |
| Leg length | 550 mm |
| Indside dimension between legs min. | 550 mm |
| Indside dimension between legs max. | 870 mm |
| Outside dimension over legs min. | 700 mm |
| Outside dimension over legs max. | 1150 mm |
| Turning radius | 1300 mm |
| Lifting min. | 400 mm |
| Lifting max. | 1470 mm |
| Total weight | 40 kg |
