Description
Standard equipment:
- Upholstered hanger bar
- Available in different color combinations
- Adjustable Handle
General:
Main features:
- Charger: Is integrated in the control box
- Power overload circuit: The control box is also equipped with a power overload circuit for the lifting and leg spreading functions.
- Hand control: Is equipped with pictograms indicating the up/down and in/out functions. It has an expandable spiral cord and is magnetically attached for flexible positioning.
- Emergency stop: Disconnects the power supply to and from the batteries
- Audible beep: Sounds when charging is required
- Rear Castors: braked
Emergency
Release buttons: If, for some reason, the lift falls, 2 emergency release buttons will lower the lifting arm: one electric placed on the control box, and one manual on the lifting actuator. Battery indicator: Informs you of battery capacity. Battery charging light: Lights up when charging is required.
| Art no.: 2003-200-2 | |
| Technical Specifications | |

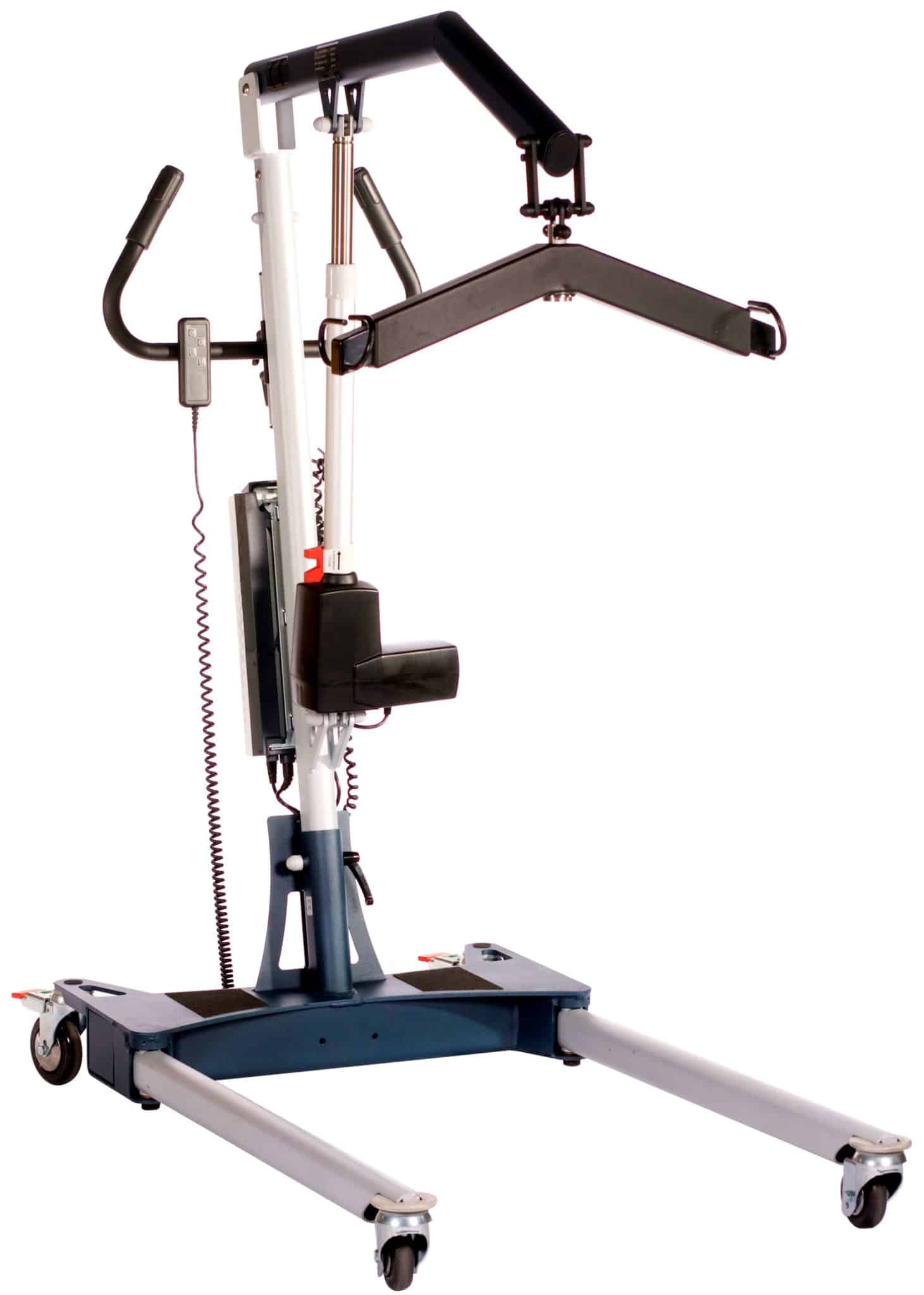

| Selandia VL 200 | |
| Max. User weight | 200 kg |
| Height of undercarriege | 130 mm |
| Floor clearance height | 70 mm |
| Castors | 80 / 100 mm |
| Leg length | 1110 mm |
| Indside dimension between legs min. | 555 mm |
| Inside dimension between legs max. | 1050 mm |
| Outside dimension over legs min. | 650 mm |
| Outside dimension over legs max. | 1180 mm |
| Turning radius | 1250 mm |
| Lifting min. | 460 mm |
| Lifting max. | 1700 mm |
| Total weight | 47 kg |
| Weight lower section | 25 kg |
| Weight upper section | 18 kg |
| Weight upper section | 22 kg |
